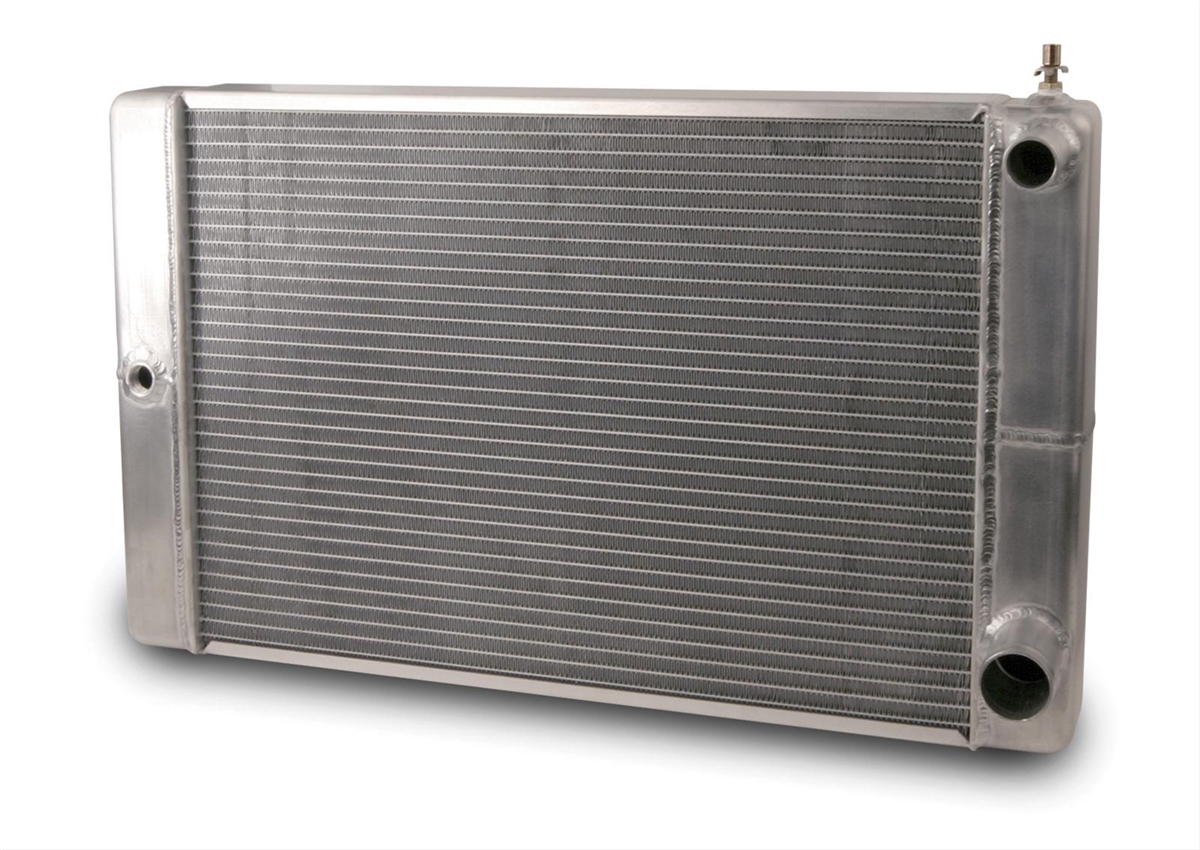

Afco Cross-Flow 2 Row 3" Core Radiator
Afco Cross-Flow 2 Row 3" Core Radiator



Our Price: $359.00
Part Number: 80133N


Availability:: Usually Ships in 3 to 5 Business Days
Product Code: DM3434
Qty:

Description

Afco Cross-Flow 2 Row 3" Core Aluminum Racing Radiator For Custom Projects. This radiator has a thick 3" 2-row core, and it is cross flow, meaning that the coolant goes across the top half first, then back through the bottom half, which cools very effectively for race and drift cars. The inlet is 1.5", and the outlet is 1.75", and no provisions are included for brackets, they would need to be fabricated and welded on. This is not a direct-fit radiator, it is a universal radiator for people who can tig weld and do the custom fab required to mount it.

Dimensions:
27.5" overall width
16" overall height
3" thick.
Inlet and outlet are on the right (LHD passenger) side. (We do not accept returns or exchanges on this item, please be sure it is what you need before making a purchase)
