DM Diff/Trans Adapter for MK4/GS/SC 3-Bolt to 4-Bolt 1350 flange.

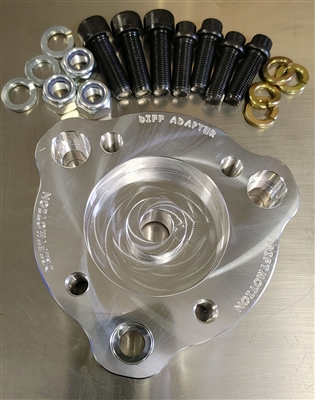

Diff Adapter for MK4/GS/SC 3-Bolt to 4-Bolt 1350 flange.



Additional Views:


Our Price: $149.99
Part Number: Diff Adapter MK4/GS/SC


Availability:: Usually Ships in 2 to 3 Business Days
Product Code: DM221


3 Bolt Flange Size*:


Qty:
Description

NEW! Driftmotion Differential and Transmission adapter for MK4/Aristo/GS/SC/LS 3 bolt Toyota/Lexus differential or transmission flange to 4 bolt 1350 flange. Get rid of that old rubber isolator that is just waiting to fail, and replace it with this 1" thick billet adapter. Hook up one of our 3" or 3.5" driveshafts to it and go have some fun! This will not work with the stock driveshaft, it is for a one piece driveshaft with a 1350 rear flange. Bolts and washers included. If your transmission has a 3 bolt flange, this piece is required to adapt it to use with our aftermarket driveshaft. We updated the design to cut down on the weight, and we are the first to integrate raised pads on the back of the adapter to better interface with the 3 bolt flange! We now offer this item in two different 3 bolt patterns, which can work with almost all 3 bolt flanges on 90's and 2000's Toyota and Lexus differentials and transmissions. We also changed the design to use a 7/16" 12 point bolt for the 4 bolt pattern, so that a ball tip allen socket isn't needed for installation.

The "Small Pattern" bolt holes measure approximately 90.5mm center to center, from one hole to another (3.57")

The "Large Pattern" bolt holes measure approximately 99.5mm center to center, from one hole to another (3.91")

*Various differentials or transmissions need the smaller or larger bolt pattern, so please measure on your actual transmission and/or differential flange.

*The 4 bolt pattern matches a Dana Spicer 3-2-119 flange yoke.

Average Rating: Average Rating: 5 of 5 5 of 5 Total Reviews: 1 Write a review »

  0 of 0 people found the following review helpful:

5 of 5 Thank you Aaron April 17, 2020
Reviewer: EAst Alex from Bordentown , NJ United States
This adapter came in very useful when I swapped out My old 6cyl 4.27 diff for a 8CYL 3.266 diff, I did not have to swap the diff flange worked out great!
