Driftmotion 1JZ/2JZ NON-VVTi Water Pump Pulley

Home > 1JZ & 2JZ Swap Parts >

Additional Photo Views:

Our Price: $39.99

Part Number: Driftmotion 1JZ/2JZ NON-VVTi Water Pump Pulley

Availability:: Usually Ships Within 2-3 Business Days
Product Code: DM3579

Finish Options*:

Qty:

Description

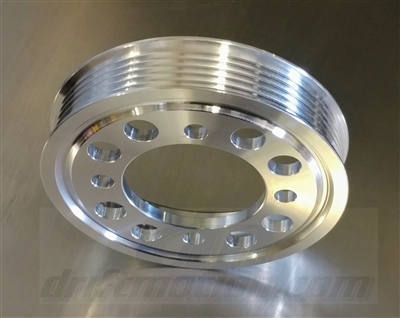

Driftmotion 1JZ/2JZ NON-VVTi Water Pump Pulley
If you don't need the alternator or power steering pulley from our 3pc kit, this is the water pump pulley alone. This pulley is made from 6061 aluminum like our other race proven Driftmotion pulleys.This pulley fits the 1JZ-GTE, 2JZ-GTE and 2JZ-GE with the larger bolt pattern, like what came on the US MK4 Supra. The 2JZ-GE VVTi in the US SC300 uses this pulley with the 8mm studs and 58mm center bore.

THE PULLEY SIZE ISN'T SOLELY DETERMINED BY BEING A VVTi or NON-VVTi ENGINE.
PLEASE LOOK AT THE PICTURES AND MEASURE YOUR WATER PUMP FLANGE TO BE SURE YOU ORDER THE CORRECT WATER PUMP PULLEY!

The center bore of most 1JZ and 2JZ NON-VVTi water pump pulleys is 58mm, the mounting stud bolt circle diameter is 74mm, and the studs are 8mm.

The center bore on most 2001-up 2JZ-GE VVTi water pump pulleys is 28mm, and the studs are 6mm. That pulley only fits fit the later model 2JZ-GE VVTi and 1JZ VVTi water pumps with the smaller bolt pattern.
We offer that pulley HERE

Neither of our water pump pulleys fit the hydrofan type water pumps that have a splined shaft.
